DV-66 Player
**being replaced by the DV68**

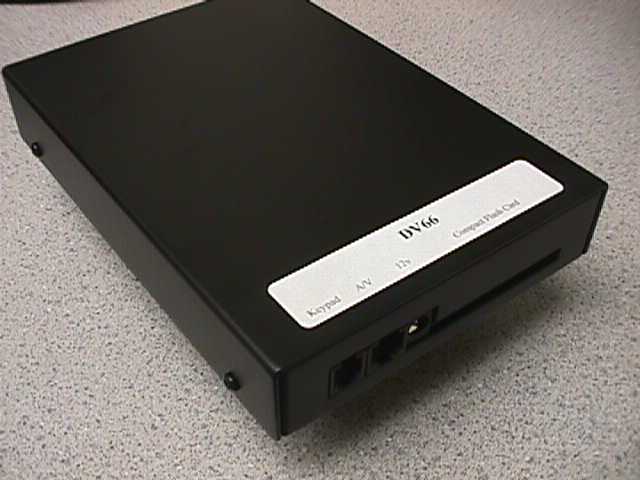

DV66 Media Player
Click on picture above for a closer view

   The Technovision® DV66 is an industrial MPEG2 & 4, MP3, VOB and DIVX playback device, capable of either continuous video or interactive playback through user-selectable tracks. The DV66 was primarily designed for kiosk applications, allowing for direct access to individual files of standard definition video (or MP3 audio) through various pushbuttons and a TV66K. The DV66 can also be triggered by motion sensors, computers, or RS232TTL multimedia controllers like the TV66K or KPC2 . Multiple players can also be synchronized using SYNCHT1 firmware.

Physical Specifications
Power Requirements:
  120/220VAC, 60/50 Hz
  (12VDC, universal power supply included)
  Current: 600mA
Net Weight:
  1.5 lbs.
Operating Temperature/Humidity:
  -30F to 85F (non-condensing).
Dimensions (HxWxD)
  1.8" (with feet) x 4.5" x 7.2"
  35mm (with feet) x 114mm x 162mm

DV66 Quick Reference Guide
RS232TTL command list
MPEG2 encoding guide
MPEG4 encoding guide
........additional manuals
Related Products
DV75N..HDMI HD player
CDS12L..LAMP Controller
Motion Sensors
Related Products

Standard Features
  • ALL DIGITAL - no moving parts.
  • DVD quality (SD) playback.
  • Supports MPEG1&2 (.mpg), MPEG4 (.mp4), .jpg, .mp3 and DVD (.vob) playback.
  • Interactive modes (MENU/REPEAT).
  • Built-in RS232TTL port (RJ11-4P4C)
  • RJ12 (6P6C) to 3xRCA A/V cable.
  • VGA (640x480) Output.
  • S-VIDEO Output.
  • Stereo LINE LEVEL Audio output.
  • Instant track Access.
  • Seamless Looping playback.
  • Compact Flash based (FAT16/32).
  • Direct access to 99 tracks in MENU or REPEAT mode.
  • RoHS compatible.
Hardware Options:
TV66K ...25-Button/Keypad Controller
1520-0010...Replacement A/V cable
DV66RS232 ...RS232C to DV66 control cable
CF-4G ...4GB HighSpeed CF cards
CF-8G ...8GB HighSpeed CF cards
