DV75N

DV75N image
Click on picture above for a closer view

   The Technovision DV75N is the latest High Definition (HD) solid-state media player, incorporating multiple features such as remote content updating, scheduled playlists, synchronized content and external control via touchscreen, RS232, Ethernet or pushbuttons. When used as a remote (networked) player, functions such as Automatic Content Updates from a server (Remote Internet Server, LAN or WLAN), playback scheduling and Scrolling (Banner) Messaging are all possible.
  Up to sixteen (16) DV75Ns can also be connected together using standard Ethernet cables so that the playback of their content (JPG and/or video) is synchronized (MultiPlayer Synch). The players can now also be controlled via the Ethernet port as well as the RS232 port. All these features come STANDARD in the DV75N.

Package Contents:
  • DV75N HD/NETWORK/SYNC media player
  • 120V, 60 Hz to 12 VDC 1A Adapter
  • IR remote control

    Some hardware options:
  • 16, 32 or 64GB internal SDHC card upgrade.
  • WiFi card/antenna installed ($65 est.)

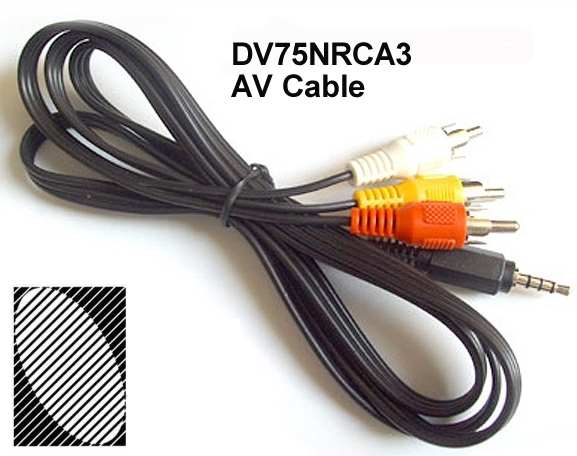

  • DV75NRCA3, 6' Audio/Video cable $5 .est
  • EX100, hd_1080p Amp (100') $29 .est
  • CCHDMI-3, 3' hdmi cable $8 .est
  • CCHDMI-6, 6' hdmi cable $10 .est
  • CCHDMI-10, 10' hdmi cable $12 .est
  • TESW8, 8-port Ethernet switch.
  • CAT5X-2, 2-player 2' crossover cable $3 .est
  • CAT5X-10, 2-player 10' crossover cable. $5 .est
  • CAT5-2, 2' CAT5 network cable.
  • CAT5-7, 7' CAT5 network cable.
  • CAT5-10, 10' CAT5 network cable.
  • CAT5R-4, 4' retractable CAT5 cable.
  • Related Products
       TV66K Controller
    HD01.. HiDef repeater
    HD02.. HiDef/VGA player
    THD002.. HiDef/button player
    Related Products

    DV75N Features
  • Standard 8GB internal SDHC card.
  • FAT32 and NTFS Support (up to 64GB).
  • Network and remote IP updating ability.
  • Built-in Multi-Player Ethernet Synching.
  • MPEG-2 (MP@HL), WMV9 (MP@HL)
  • MPEG-4.2 (ASP@L5)
  • MPEG-4.10 (H.264) MP@L4.0, HP@L4.0
  • MPEG1(L1..3), MPEG4 (AAC-LC_2C, HE-AAC),LPCM,WMA9
  • JPEG (max 4096x4096@72dpi,24-bit,NP)

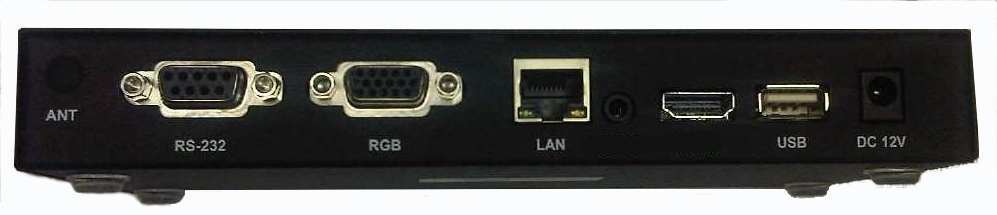

  • LED status lights (SD, ETHERNET, WLAN and POWER)
  • USB 2.0 port for updating internal content
  • A/V OUT on 3.5mm, 4-conductor jack - optional DV75NRCA3 cable is available.
  • RJ45 Ethernet LAN Port
  • VGA Output up to 1920x1200
  • DB9F RS232C port

    Physical Specifications
    Power Supply (Wall adapter included):
      INPUT : 120VAC, 60 Hz
      OUTPUT: 12Vdc (2.5mm, center positive, 17.5W)
    Power Consumption:
      550ma (average) @ 12VDC
    Net Weight:
      700 g. (1.2 lbs.)
    Dimensions (L x W x H)
      7.7" x 3.4" x 1.1"
      195mm x 87mm x 28mm
    Operating Temperature:
      32 to +140 deg. F (0 to +60 deg. C)
    Operating Humidity
      0 to 85 % non-condensing

    Download
    Quick Reference Guide
    Content Encoding Guide
    ....more manuals
